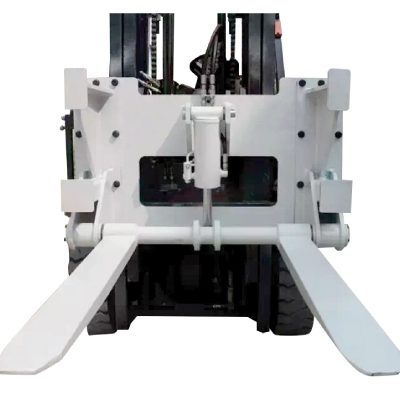

유압 지게차 어태치먼트로드 스태빌라이저

/ 모든 첨부 파일 / 유압 지게차 어태치먼트로드 스태빌라이저

유압 지게차 어태치먼트로드 스태빌라이저

제품 응용 프로그램 및 구성의 중요한 구성 요소

1의 유압 장치 : 조정 가능한 압력 제어 벨브를 가진 배급은 필요에 따라 조정할 수 있습니다; 인감 부품은 수입 제품입니다. 콘 씰이있는 고압 호스, 고성능 수입 호스.
2, 구조 부품 : 고강도 강철의 주요 구성 요소, 변형에 대한 좋은 저항, 디자인 된 모양, 간단하고 관대합니다.
3, 기계적 성능 : 상품 오픈 / 클램핑 조정, 좋은 비전에 따라 다른 높이로 실린더 조정을 통해; 아스팔트의 요구 사항을 충족시킬 수있는 그룹을 추가하십시오.
4 응용 프로그램 : 식품, 음료, 수입 및 수출 무역 분야에서 널리 사용되며 주로화물 트레이를 안정화하는 데 사용되어화물 슬라이드에 비해 프로세스가 너무 높아지지 않도록합니다.

노트


1,the actual truck / carrying capacity is a comprehensive factory obtained from the forklift.

2,this is a matching increase in group 1 required additional forklifts require asphalt.

빠른 세부 사항


원산지 : 중국 복건성 (본토)
브랜드 이름 : HUAMAI
Model Number: WD30J-A1
Product Name: Load Stabilizers
Type: WD30J-A1
Installation Grade: II
Adaptation Forklift: 1-2.5 t
StrokeB: 960-1970 mm
Level Focus: 240 mm
Omission From ET: 124 mm
Weight: 190 kg
Pressing Force Plate: 100-160 bar
MOQ : 1SET


It’s been said that the single-double forklift attachment may have been the greatest thing to happen to material handling productivity in the last thirty years. The single-double allows a standard forklift to carry two pallets at a time instead of one.

we sell Cascade’s single-double pallet handler which can hydraulically lift, carry and side-shift multiple pallets side by side. Moving double the loads means fewer trips and greater productivity, and side-shifting allows faster, more accurate loading of trucks and containers.

Standard features include:

Dual class II and III mountings, easily field converted
Bolt-on interchangeable forks can be rotated for increased life and easy servicing
Arm bars give drivers a clear view of the fork tops
Adjustable fork stop blocks to fit different pallet sizes
Easy-to-service hydraulic cylinders

옵션 :
- Various load backrest configuration heights
- Load stabilizers and hold downs
- Various fork lengths and sections
- Various fork set spreads and opening ranges
- Quick-disconnect lower hooks
- Drop shank forks (forks are lowered relative to the attachment frame)
- Independent fork set control–allows moving left or right fork set independent of the opposite fork set
- Non-side-shifting models

IMPORTANT: adding a forklift attachment impacts the net capacity of your lift. Always buy from a reputable dealer and an experienced product rep.

- When buying a new forklift, mention any attachments you plan to add during the quoting phase.
- Customers who want a single-double with side-shifting capacity need to have a forklift with 4-hydraulic function and a higher capacity truck.
- Customers who will only use a single-double seasonally, or would like the option to easily swap the single-double for a different attachment such as a normal side-shift carriage, should buy a forklift with quick disconnects at the hydraulic hosing termination. This reduces attachment changeover time considerably.

View our inventory of single-double forklift attachments for sale. We also have a variety of forklift attachments, including single-doubles, available for rent. We also rent paper roll clamps, carton clamps, and fork rotators.

For questions, contact us online, or by phone. We look forward to earning your business.
